How a Double Check Valve Assembly (DCVA) Works: Complete Guide

If your water utility has told you to install a backflow preventer — or a plumber has recommended a "double check" — you're probably wondering what exactly this device does and how it protects your water supply. The Double Check Valve Assembly (DCVA) is one of the most commonly installed backflow prevention devices in the United States, and understanding how it works can help you make informed decisions about your property's compliance.

What Is a Double Check Valve Assembly?

A DCVA is a mechanical backflow prevention device that uses two independently acting, spring-loaded check valves arranged in series to prevent water from flowing backward through your plumbing. It's designed to protect potable (drinking) water supplies from contamination caused by backpressure or backsiphonage.

Think of it like two one-way doors installed back to back. Water can push through both doors in the normal direction, but if water tries to flow backward, both doors slam shut — and even if one door fails, the other still blocks the reverse flow.

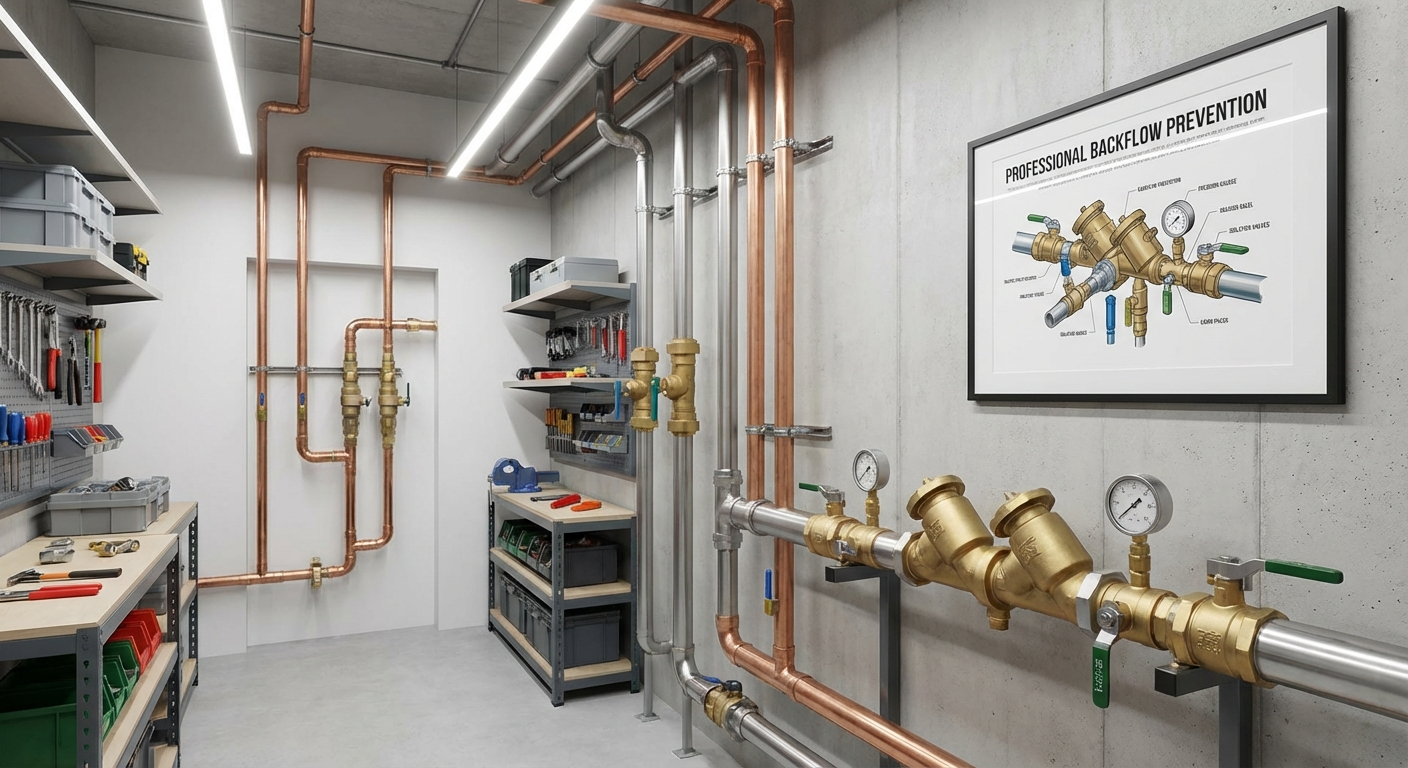

A typical utility room where backflow prevention devices like DCVAs are installed to protect the water supply.

Key Components of a DCVA

Every Double Check Valve Assembly includes four main components:

Two spring-loaded check valves. These are the heart of the device. Each check valve contains a clapper (or disc) held closed by a spring. When water flows in the correct direction, the pressure pushes the clapper open. When flow reverses, the spring forces the clapper shut.

Two shut-off (gate) valves. Located on each end of the assembly, these allow a technician to isolate the device from the water supply during testing and maintenance.

Four test cocks. These are small ports positioned between and outside the check valves. A certified backflow tester connects gauges to these ports to measure pressure differentials and verify that each check valve is sealing properly.

A single body or modular housing. The entire assembly is typically contained in a bronze or stainless steel body, designed to withstand working pressures of at least 150 PSI per AWWA C510 standards.

How a DCVA Prevents Backflow

Backflow happens in two ways, and a DCVA protects against both:

Backpressure

Backpressure occurs when downstream pressure exceeds the supply pressure — for example, if a boiler or pump creates higher pressure than the city water main. When this happens:

1. The reverse pressure pushes against the first check valve (closest to the potential contamination source), forcing the clapper shut against its seat.
2. If the first valve leaks or fails, the second check valve independently closes, providing a redundant barrier.
3. The dual-valve design means both valves would need to fail simultaneously for contamination to reach the potable supply.

Backsiphonage

Backsiphonage occurs when negative pressure (a vacuum) develops in the supply line — often from a water main break or heavy firefighting demand nearby. During backsiphonage:

1. The drop in upstream pressure removes the force holding both clappers open.
2. The springs in each check valve snap the clappers closed.
3. The sealed check valves prevent contaminated water from being siphoned back into the clean supply.

Brass valves and fittings similar to those found in backflow prevention assemblies.

Where Are DCVAs Required?

Water utilities and local plumbing codes determine which properties need backflow prevention and what type of device is appropriate. DCVAs are typically required for low-hazard cross-connections, including:

• Fire sprinkler systems (without chemical additives like antifreeze)
• Irrigation and lawn sprinkler systems connected to the potable supply
• Commercial buildings with connections to non-potable systems
• Boiler feed lines in low-hazard applications
• Swimming pool fill lines in some jurisdictions
• Multi-family residential buildings depending on local code

The key distinction: DCVAs are approved for situations where a backflow event would be a nuisance or pollutant (like sediment or stale water) rather than a health hazard (like chemicals or sewage). For high-hazard situations, your utility will require a Reduced Pressure Zone (RPZ) assembly instead.

Your local water utility's cross-connection control program will specify exactly which device your property needs. If you've received a backflow test notice, it may already specify the required device type.

DCVA vs. RPZ: What's the Difference?

The main difference is the level of protection:

DCVA (Double Check Valve Assembly): Two check valves in series. No relief valve. Suitable for low-hazard connections. If both check valves fail, there's no additional failsafe — contaminated water could potentially reach the supply.

RPZ (Reduced Pressure Zone Assembly): Two check valves plus a hydraulic relief valve between them. The relief valve creates a low-pressure zone and will discharge water to the atmosphere if both check valves fail — guaranteeing that contamination cannot reach the potable supply. Required for high-hazard applications.

For a detailed comparison of all device types, see our guide on types of backflow prevention devices.

Annual Testing Requirements

Every DCVA must be tested annually by a certified backflow tester. During the test, the technician:

1. Closes the downstream shut-off valve and connects gauges to the test cocks.
2. Tests the second check valve (Check Valve #2) by measuring its holding pressure.
3. Tests the first check valve (Check Valve #1) the same way.
4. Verifies that both check valves hold at least 1.0 PSI of differential pressure (the minimum threshold in most jurisdictions).
5. Records the results and submits a test report to the water utility.

If either check valve fails to hold adequate pressure, the assembly needs repair or replacement. Learn more about common reasons backflow tests fail.

Missing your testing deadline can result in fines, water service shutoff, or both. Check our guide on backflow testing deadlines and consequences to stay compliant.

A certified technician inspecting plumbing connections — annual testing by qualified professionals keeps your DCVA compliant and your water safe.

Installation Considerations

If you need a DCVA installed, keep these requirements in mind:

• Accessibility: The device must be easily reachable for annual testing. Most codes require 12-18 inches of clearance on all sides.
• Orientation: DCVAs are typically installed horizontally with test cocks facing upward.
• Location: Usually installed after the water meter and before any branch or tee serving the protected system.
• Drainage: Adequate drainage around the device prevents water damage during testing.
• Freeze protection: In colder climates, DCVAs need insulation or heated enclosures if installed outdoors.
• Permits: Most jurisdictions require a plumbing permit for installation.

Installation should always be performed by a licensed plumber familiar with your local state and city backflow requirements.

How Much Does a DCVA Cost?

DCVA costs vary by size and installation complexity. For residential irrigation systems, expect to pay between $200-$500 for the device plus $200-$400 for professional installation. Commercial DCVAs for fire sprinkler systems can run $1,000-$5,000+ depending on pipe size. Annual testing typically costs $50-$150. For a full breakdown, see our backflow testing cost guide.

Find a Certified Tester Near You

Whether you need a new DCVA installed, your existing one tested, or a failed device repaired, working with a certified backflow prevention professional is essential. Find a certified backflow tester in your area to get a quote and stay compliant with your local water utility's requirements.

---
